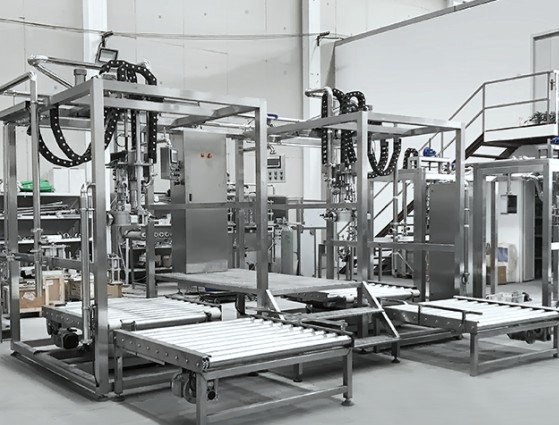

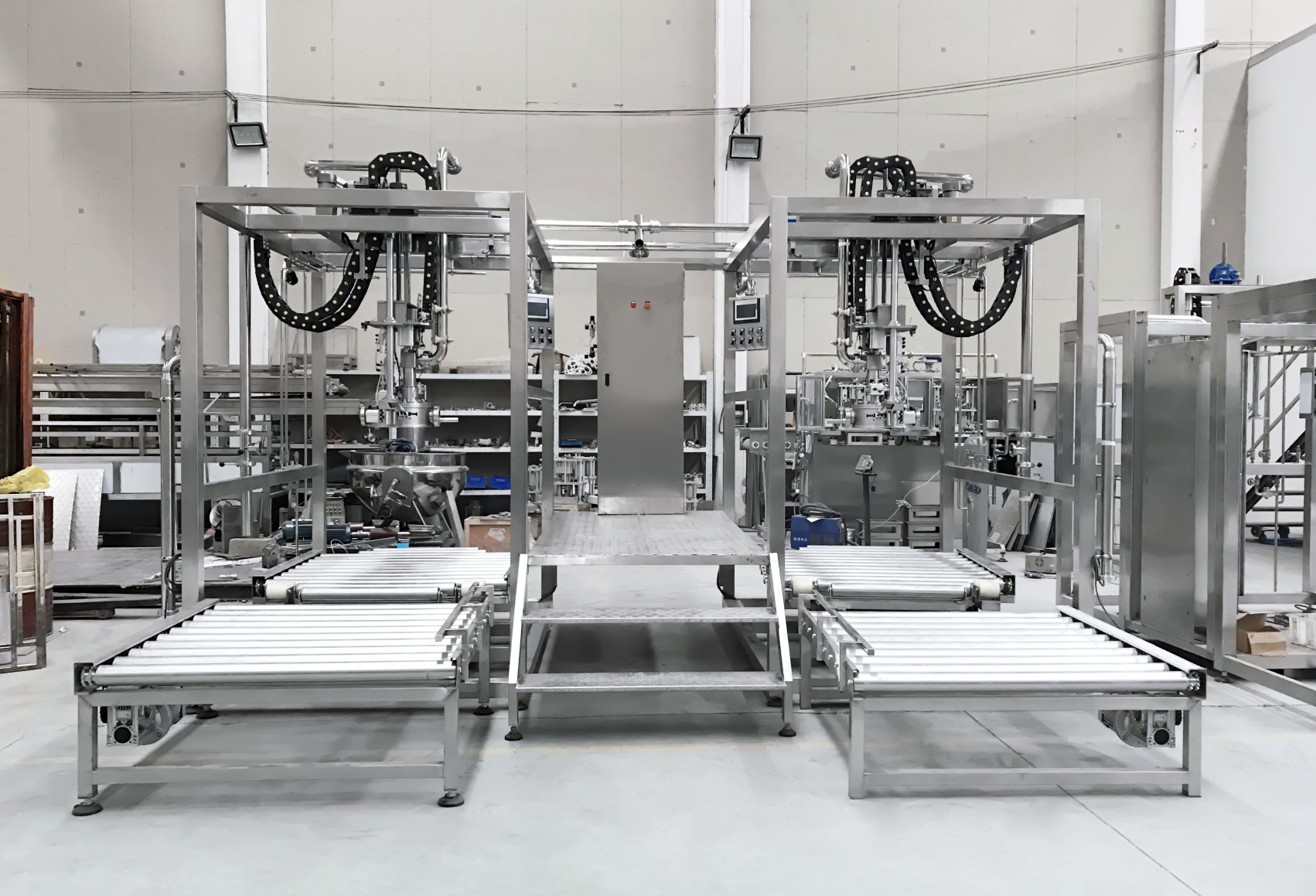

EQUIPMENT INTRODUCTIO

This machine is designed and manufactured by our company with Italian technology. It is suitable for filling fruit and vegetable juice, fruit and vegetable pulp or its concentrated products, dairy products and other viscous or non-viscous fluids. Mainly by aseptic filling head, lifting system, man-machine control system, steam protection system, metering system, rotary pallet (for 220L four barrels) , roller conveying system. High temperature and positive pressure are always maintained in the filling chamber by steam injection to ensure the continuous aseptic state of the filling chamber, and both filling and sealing are completed in aseptic environment.

MAIN FEATURES OF EQUIPMENT

◆In addition to motor, electrical configuration and soft connection, are made of SUS304 or 316L stainless steel.

◆Suitable for aseptic filling of 220L-1000L aluminum-plastic composite aseptic bag.

◆Equipped with condensate water collection device to avoid condensation water dripping phenomenon.

◆The movable joint of material pipeline is protected by steam barrier, and the filling chamber is sterilized by steam, which can keep aseptic state continuously and ensure the safety of filling materials.

◆The main accessories adopt world famous brand. Such as: Germany Siemens touch screen and PLC, Germany Cologne flowmeter.

◆Manual Bag, one-button clip bag, one-button filling, filling completed automatically out of the workshop.

◆The design of the bag-clamping mouth is reasonable, the clamping cover and the pulling cover are accurate, the bag-clamping mouth is not injured, and the equipment runs smoothly;

◆Equipment is divided into single-head and double-head structure, according to the output and filling volume of single bag flexible choice of equipment.

Technical parameters
