EQUIPMENT INTRODUCTIO

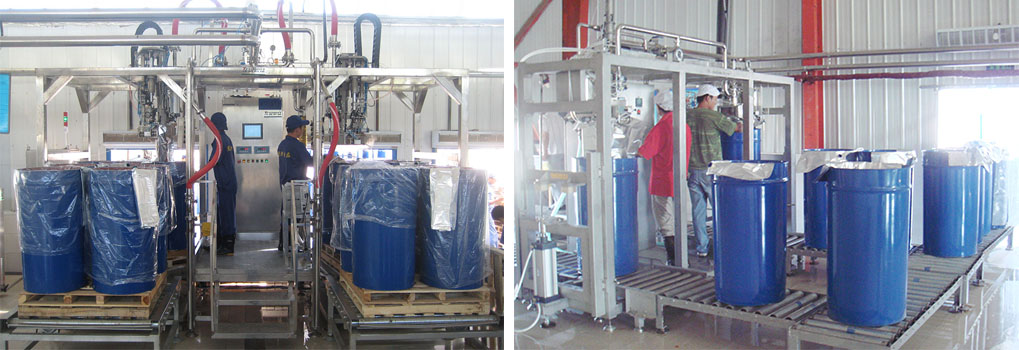

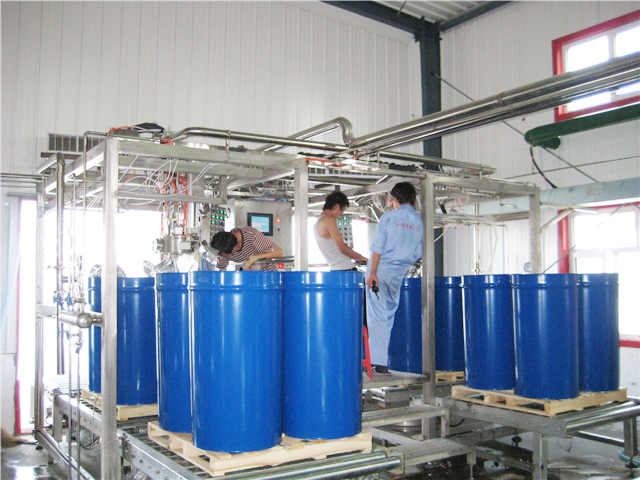

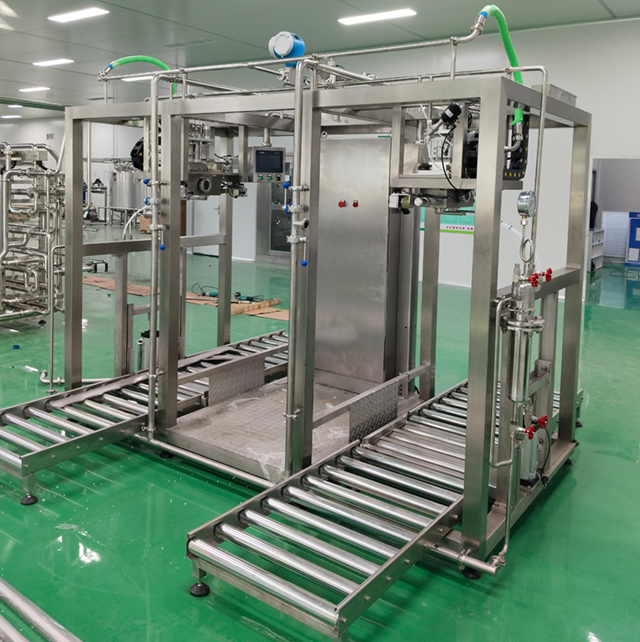

Aseptic big bag filling machine is mainly composed of aseptic filling head, metering system, tray rotating system, roller conveying system, man-machine interface, PLC control system and Operation Platform. For filling 100-220L aseptic bags. High temperature and positive pressure are always maintained in the filling chamber by means of steam injection. Aseptic bag mouth sterilization, opening, filling and sealing are completed in aseptic environment. Equipped with condensate water collection device to avoid condensation water dripping phenomenon. The equipment is widely used in fruit juice, jam, fruit pulp, dairy, chemical industry.

MAIN FEATURES OF EQUIPMENT

◆In addition to motor, electrical configuration and soft connection, are made of SUS304 or 316L stainless steel.

◆Suitable for filling bags of different sizes (100-220L) to make the production more flexible.

◆According to different materials have two kinds of metering options: weighing metering and flowmeter metering, accurate metering.

◆The movable joint of material pipeline is protected by steam barrier, and the filling chamber is sterilized by steam, which can keep aseptic state continuously and ensure filling safety.

◆According to the need can be equipped with four barrels of continuous irrigation rotating platform or driven single-barrel conveyor drum or non-powered single-barrel conveyor drum;

◆Equipped with condensate water collection device to avoid condensation water dripping phenomenon;

◆The design of the bag-clamping mouth is reasonable, the clamping cover and the pulling cover are accurate, the bag-clamping mouth is not injured, and the equipment runs smoothly;

◆Equipment is divided into single-head and double-head structure, according to the output and filling volume of single bag flexible choice of equipment.

Technical parameters
