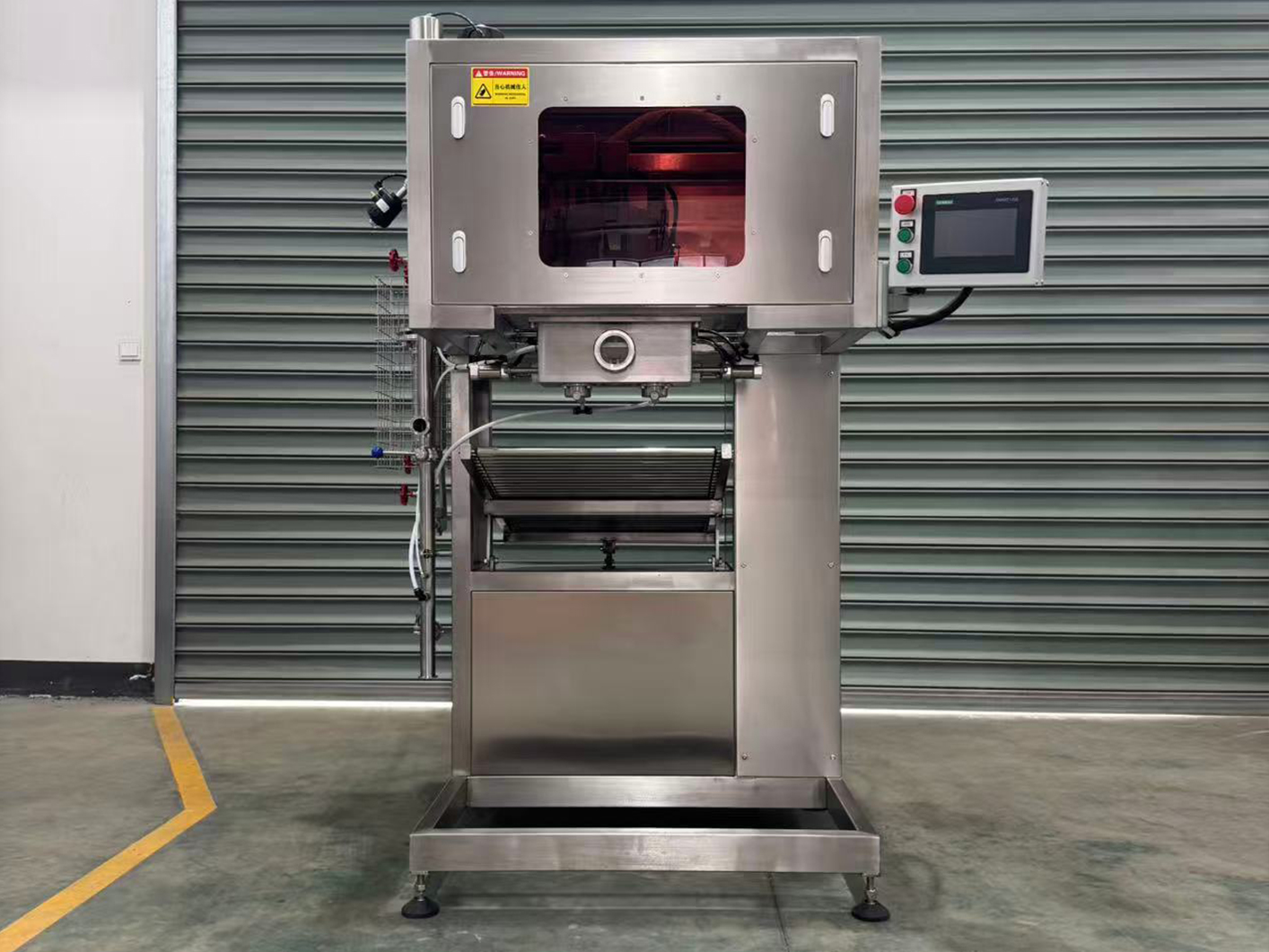

Bib box bag aseptic filling machine is our company combined with German technology for 1-50L small package development of small bag aseptic filling machine, it mainly consists of aseptic filling system, metering system, man-machine interface and PLC control system, operating platform and conveying system. The packing bag adopts aluminum-plastic compound aseptic bag. The sterilized material is opened, moved and pressed by manipulator in the sterile room, and the whole filling process is finished in the sterile state. Widely used in fruit juice, jam, dairy, coffee, wine, edible oil, water and other industries.

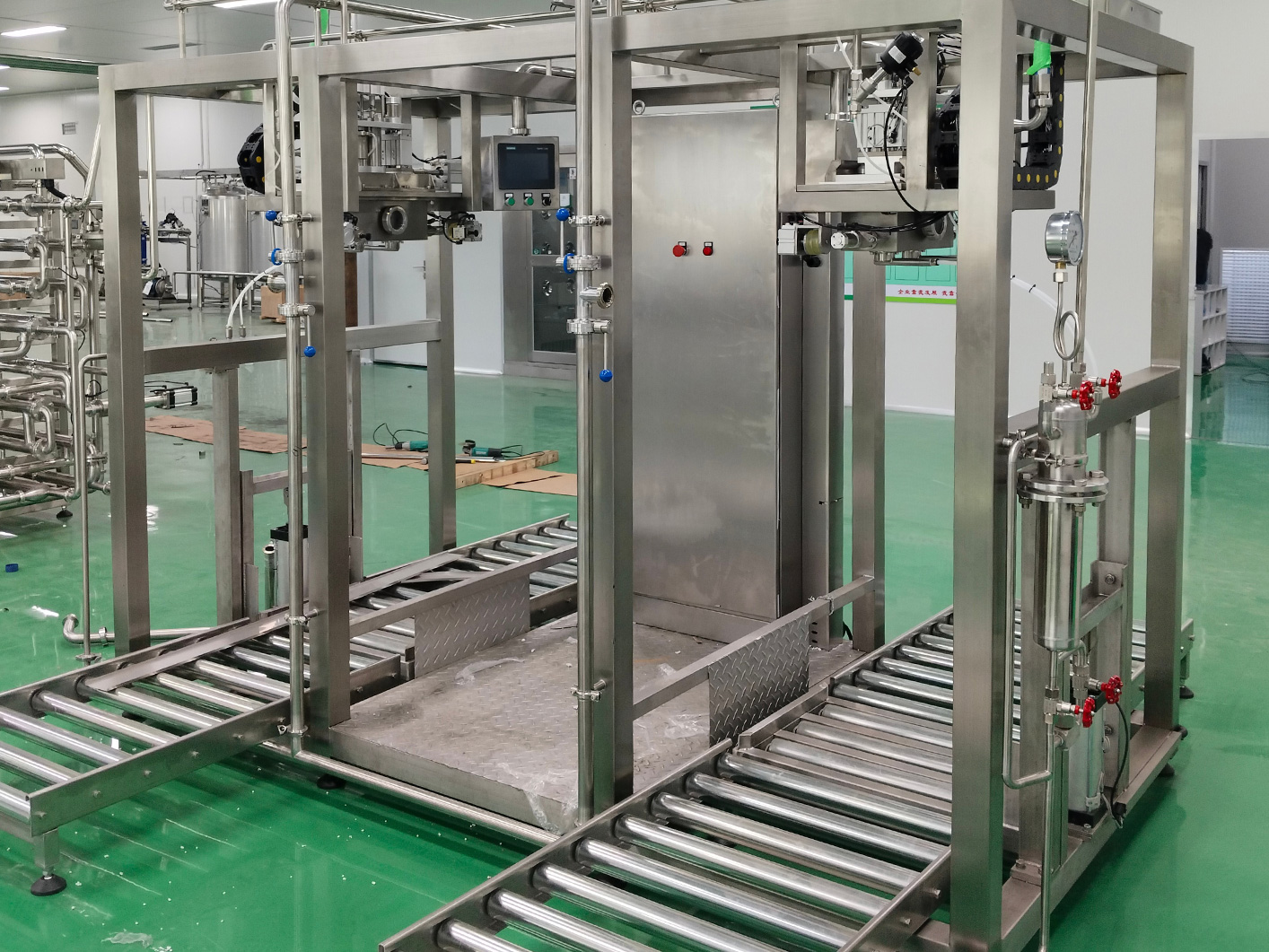

Aseptic big bag filling machine is mainly composed of aseptic filling head, metering system, tray rotating system, roller conveying system, man-machine interface, PLC control system and Operation Platform. For filling 100-220L aseptic bags. High temperature and positive pressure are always maintained in the filling chamber by means of steam injection. Aseptic bag mouth sterilization, opening, filling and sealing are completed in aseptic environment. Equipped with condensate water collection device to avoid condensation water dripping phenomenon. The equipment is widely used in fruit juice, jam, fruit pulp, dairy, chemical industry.

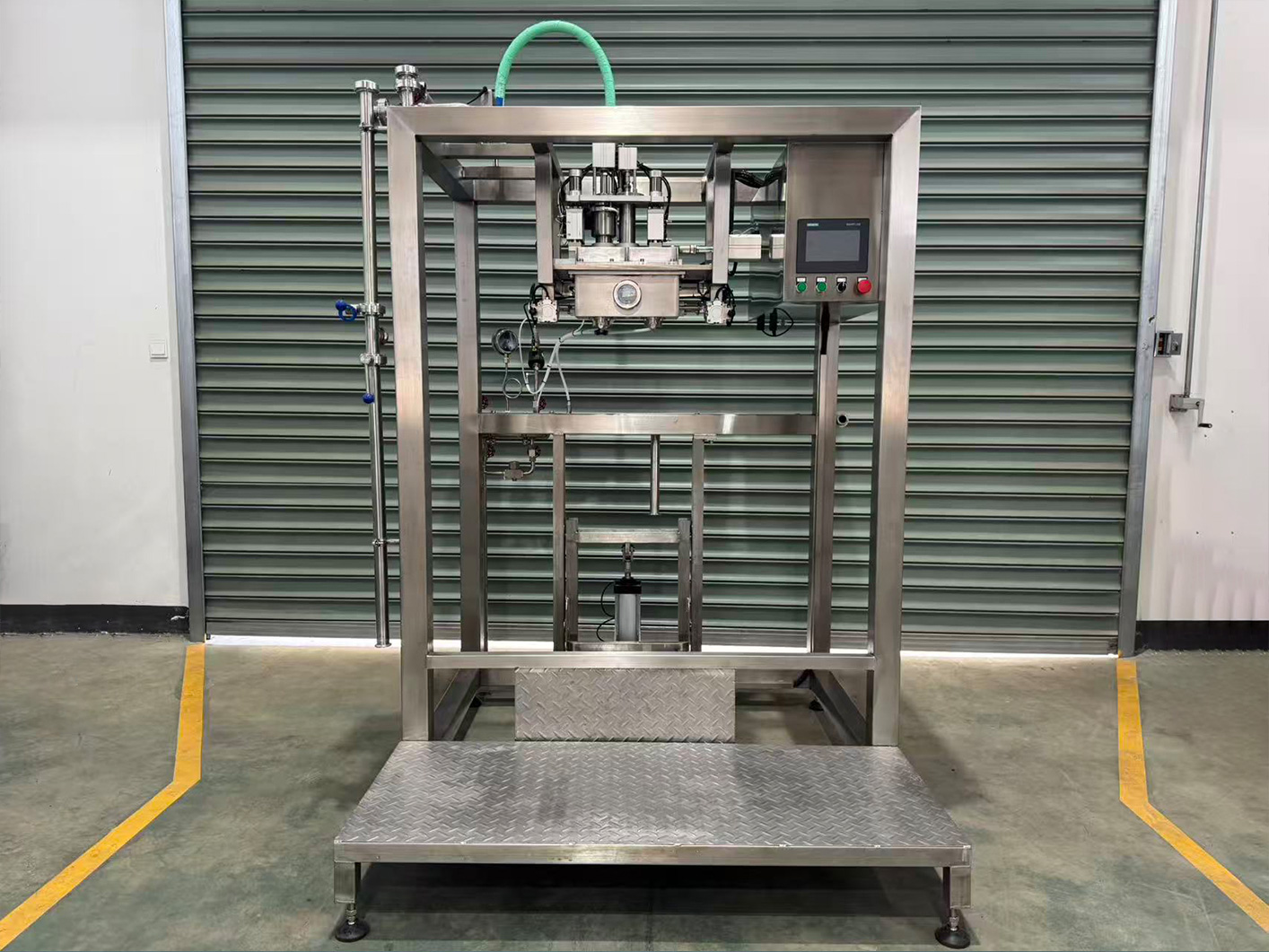

The universal sterile filling machine for large and small bags is developed and manufactured by our company in combination with German technology, suitable for filling 1-220L sterile bags. It mainly consists of sterile filling heads, measuring systems, drum conveying systems or filling platforms, human-machine interfaces, PLC control systems, operating platforms, etc. Specially used for filling 1-220L sterile bags. Steam injection is used in the filling chamber to maintain high temperature and positive pressure at all times. Sterilization, opening, filling, and sealing of sterile bag openings are all completed in a sterile environment. Equipped with a condensate collection device to avoid condensate dripping and leakage. This equipment is widely used in fruit juice, jam, jam, dairy, chemical industry, etc.

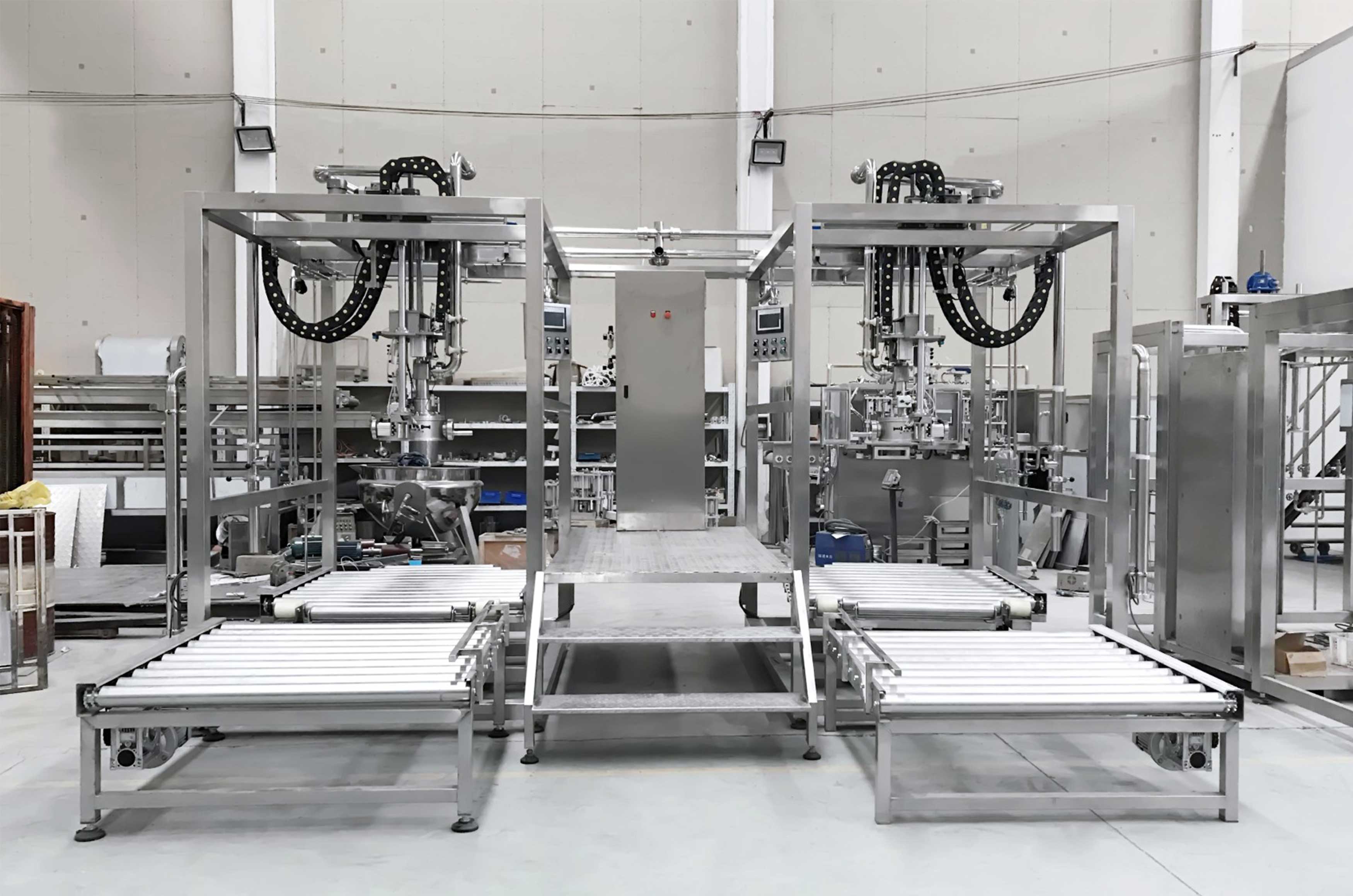

This machine is designed and manufactured by our company with Italian technology. It is suitable for filling fruit and vegetable juice, fruit and vegetable pulp or its concentrated products, dairy products and other viscous or non-viscous fluids. Mainly by aseptic filling head, lifting system, man-machine control system, steam protection system, metering system, rotary pallet (for 220L four barrels) , roller conveying system. High temperature and positive pressure are always maintained in the filling chamber by steam injection to ensure the continuous aseptic state of the filling chamber, and both filling and sealing are completed in aseptic environment.
