PRODUCT PERFORMANCE CHARACTERISTICS

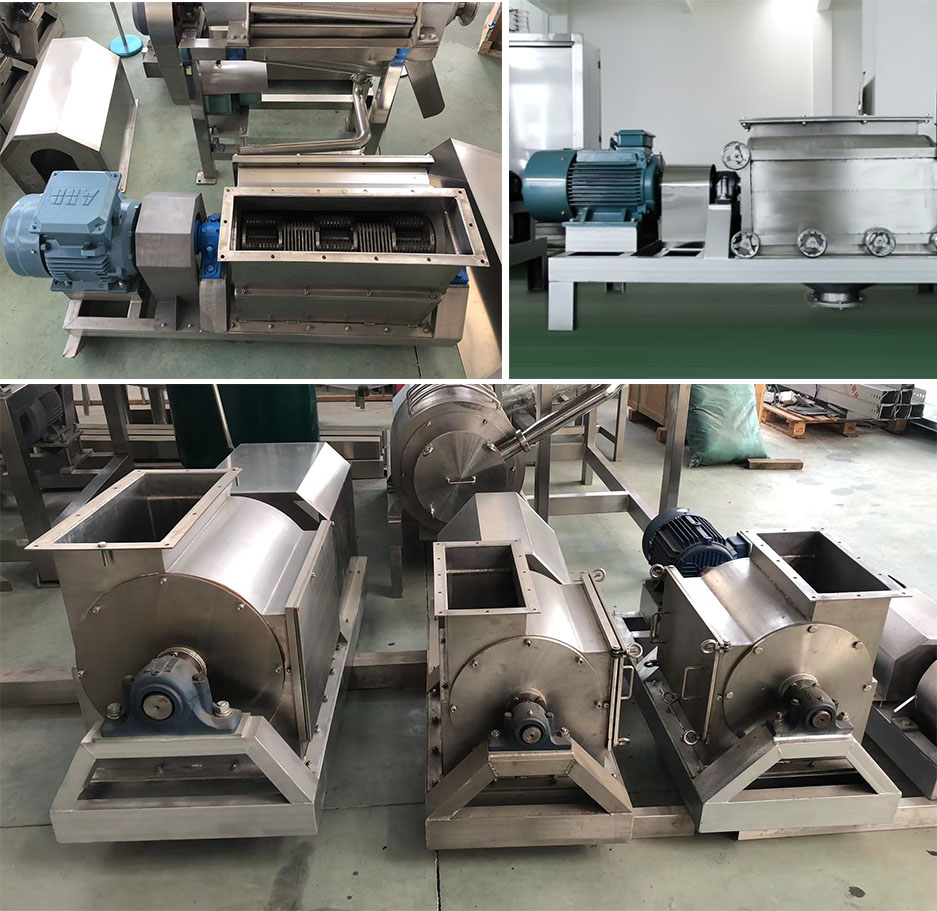

◆The machine is used to break raw materials such as fruits and vegetables into small-diameter particles, convenient for the following operation of juice beating;
◆Fusion of Italian technology, multi-group cross-blade structure;
◆The machine is made of high quality stainless steel, which meets the food safety standard;
◆The side of the equipment is equipped with quick-opening door for easy cleaning and maintenance
◆High-precision dynamic balance detection, more balanced operation, lower noise;
◆Feed hopper adopts“Z” structure to avoid material spatter;
◆The crushing size can be adjusted according to the requirements of customers or specific projects, which can effectively improve the juice yield of the original juice or pulp compared with the traditional structure;
◆According to the specific requirements of customers design capacity.
Main specifications and technical parameters
Model | HLY-PS-550 | HLY-PS-560 | HLY-PS-580 | HLY-PS-630 | HLY-PS-650 |
Capacity (T/H) | 1-3 | 3-7 | 7-10 | 10-15 | 15-20 |
Power (KW) | 7.5 | 11 | 18.5 | 22 | 30 |
Rotor Speed (r/min) | 1440 | 1440 | 1440 | 1440 | 1440 |
Crushing Particle(mm) | 2-8 | 2-8 | 2-8 | 2-8 | 2-8 |
Cear Pcs | 81 | 81 | 135 | 135 | 135 |
Dimension(mm) | 1580*550*850 | 1720*600*1000 | 1860*750*1100 | 2100*850*1250 | 2260*1000*1300 |
